Color Coated Steel
PPGI / PPGL / PPZAM
Premium color coated steel on HDG / Galvalume / ZAM substrates. Multiple paint systems (PE / HDP / SMP / PVDF) and design patterns available. Full mill certificates with every shipment.
What is Color Coated Steel?
Prepainted Steel Coil — PPGI / PPGL / PPZAM
Color coated steel (also known as prepainted steel / PPGI / color board) is produced by applying multiple layers of paint onto a galvanized or coated steel substrate through a continuous coil coating process. The result is a high-performance building material that combines the strength of steel with the aesthetic appeal of advanced paint systems.
PPGI uses hot-dipped galvanized (HDG) as the base, PPGL uses galvalume (AZ), and PPZAM uses ZAM (Zn-Al-Mg) — each offering different levels of corrosion protection.
Qiaosi International Trade supplies color coated steel in coil, sheet, and slitted strip. Full range of colors per RAL / NCS / custom. Anti-fingerprint treatment available.
Standards: EN 10169 / ASTM A755 / JIS G3312 / GB/T 12754.
Rich Color Options
RAL, NCS, or custom-matched colors
Multi-Layer Protection
Primer + backer + topcoat system
UV Resistant
High-durability topcoats for outdoor use
Long Color Retention
PVDF / HDP systems last 20–40 years
Cost-Effective
Pre-painted — no on-site painting needed
Substrate Selection
Choose Your Base Steel — HDG / Galvalume / ZAM
PPGI
Hot-Dipped Galvanized Substrate (HDG / Z). Cost-effective choice for general construction. Good corrosion resistance in standard environments.
PPGL
Galvalume Substrate (AZ / GL). 2–4× better corrosion resistance than PPGI. Ideal for roofing, wall cladding, and industrial buildings.
PPZAM
Zn-Al-Mg Substrate. 3–5× better than HDG with self-healing cut-edge protection. Premium solution for coastal & marine environments.
Technical Specifications
Full Range of Color Coated Steel Parameters
📐 Standard Dimensions
| Parameter | PPGI (HDG Base) | PPGL (Galvalume Base) | PPZAM (ZAM Base) |
|---|---|---|---|
| Substrate | HDG (DX51D+Z) | Galvalume (DX51D+AZ) | ZAM (Zn-Al-Mg) |
| Thickness | 0.17 – 1.20 mm | 0.20 – 1.20 mm | 0.25 – 1.20 mm |
| Width | 600 – 1,250 mm | 600 – 1,250 mm | 600 – 1,250 mm |
| Inner Diameter (ID) | 508 mm / 610 mm | 508 mm / 610 mm | 508 mm / 610 mm |
| Coil Weight | 3 – 10 MT | 3 – 10 MT | 3 – 8 MT |
| Standard Length | Coil or sheet (custom) | Coil or sheet (custom) | Coil or sheet (custom) |
🎨 Paint Systems Comparison
Polyester
Standard paint system. Good formability and color retention for general indoor / outdoor use.
High Durability Polyester
Enhanced UV resistance and color retention. Ideal for roofing and wall cladding in moderate climates.
Silicone Modified Polyester
Excellent heat and UV resistance. Good chemical resistance. Suitable for industrial environments.
Polyvinylidene Fluoride
Premium fluorocarbon system. Exceptional UV & chemical resistance. 20–40 years outdoor life.
Backer coat: 5–8 μm epoxy or polyester. Anti-fingerprint treatment available on all systems.
Mill test certificates (MTC / EN 10204 Type 3.1) provided. Third-party inspection welcome.

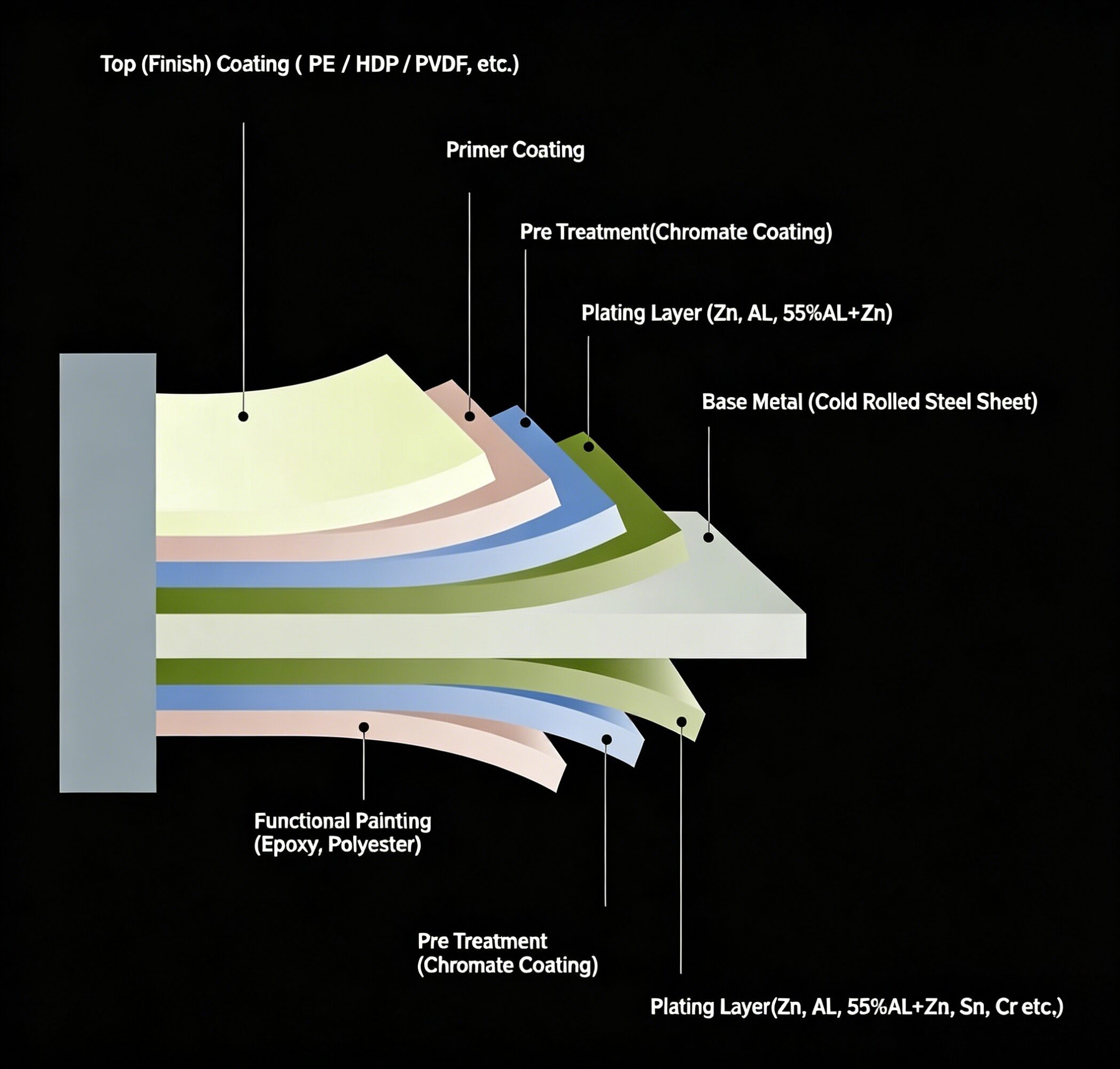

Coating Structure
Multi-Layer Paint System Cross-Section
The multi-layer system: Topcoat (PE / HDP / SMP / PVDF) → Primer → Chemical Pre-Treatment → Substrate (HDG / Galvalume / ZAM) → Backer (epoxy / polyester)
Design Patterns
Custom Pattern Printing on Color Coated Steel

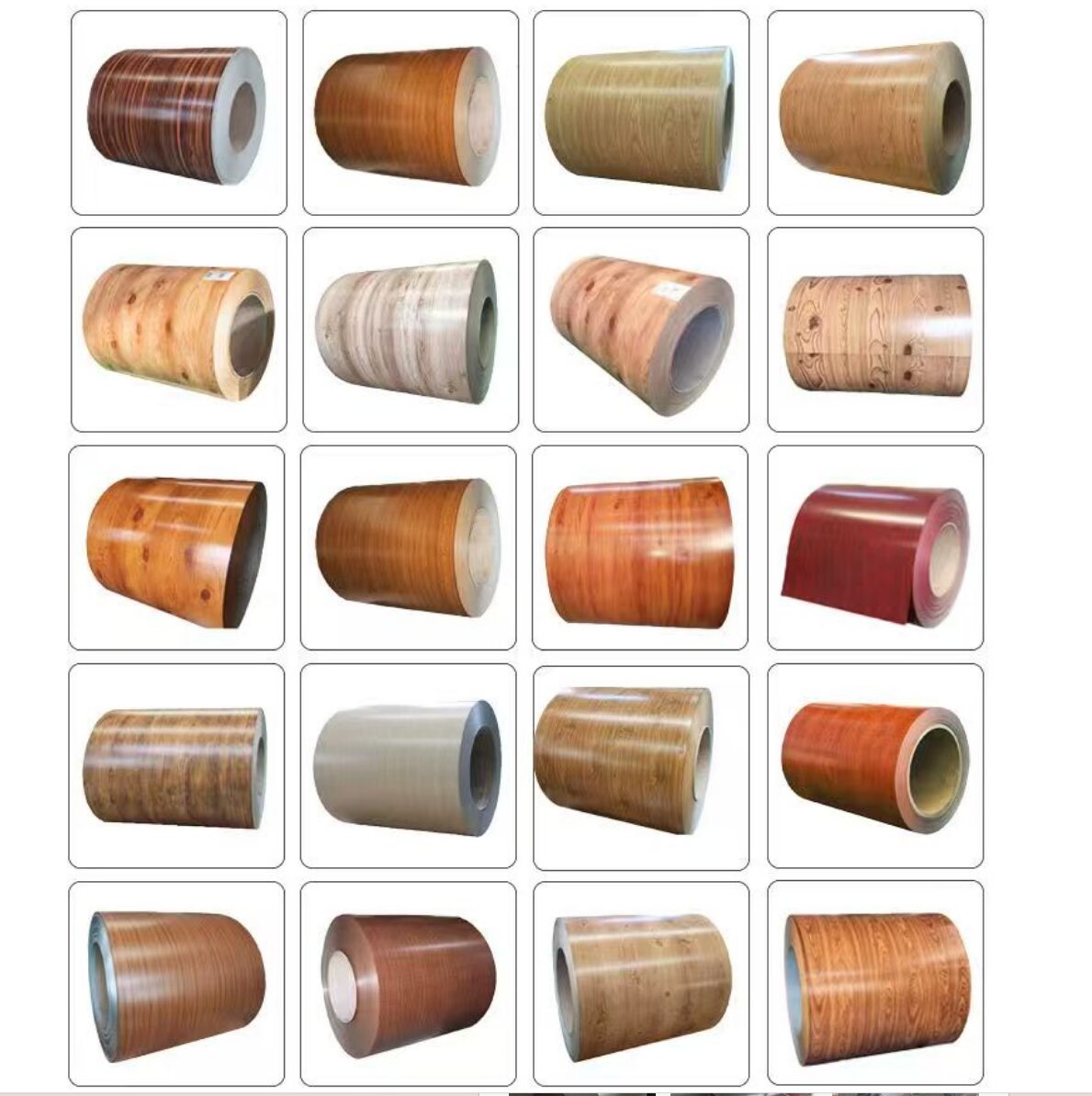

Wood Pattern

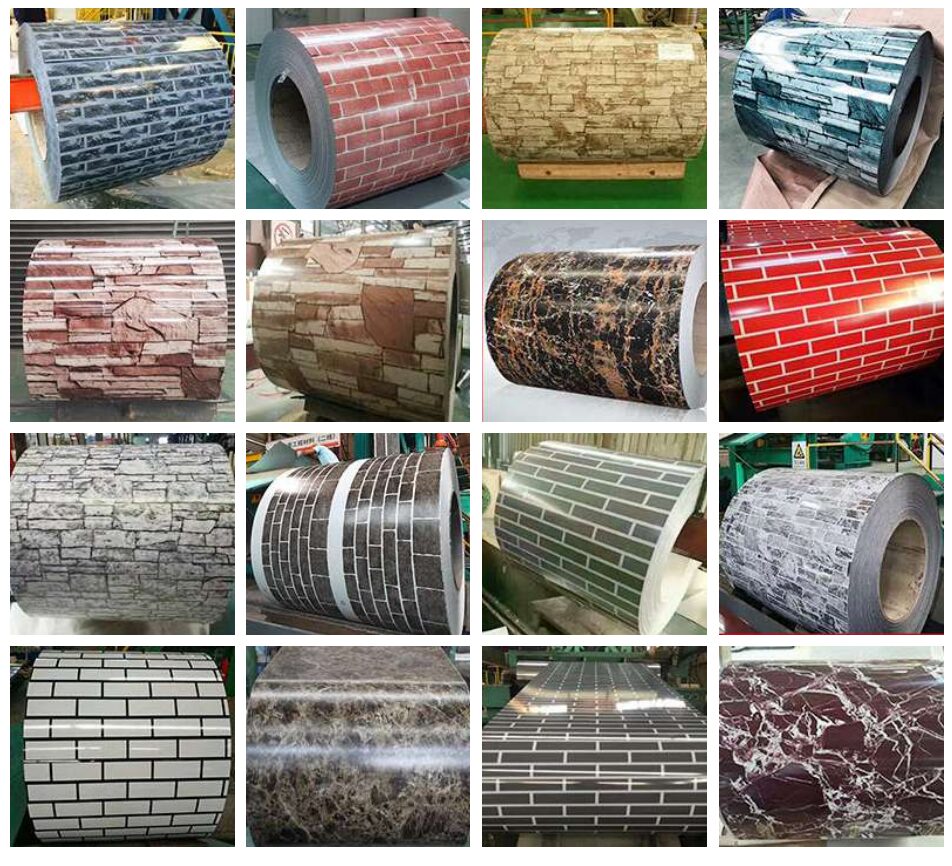

Brick Pattern

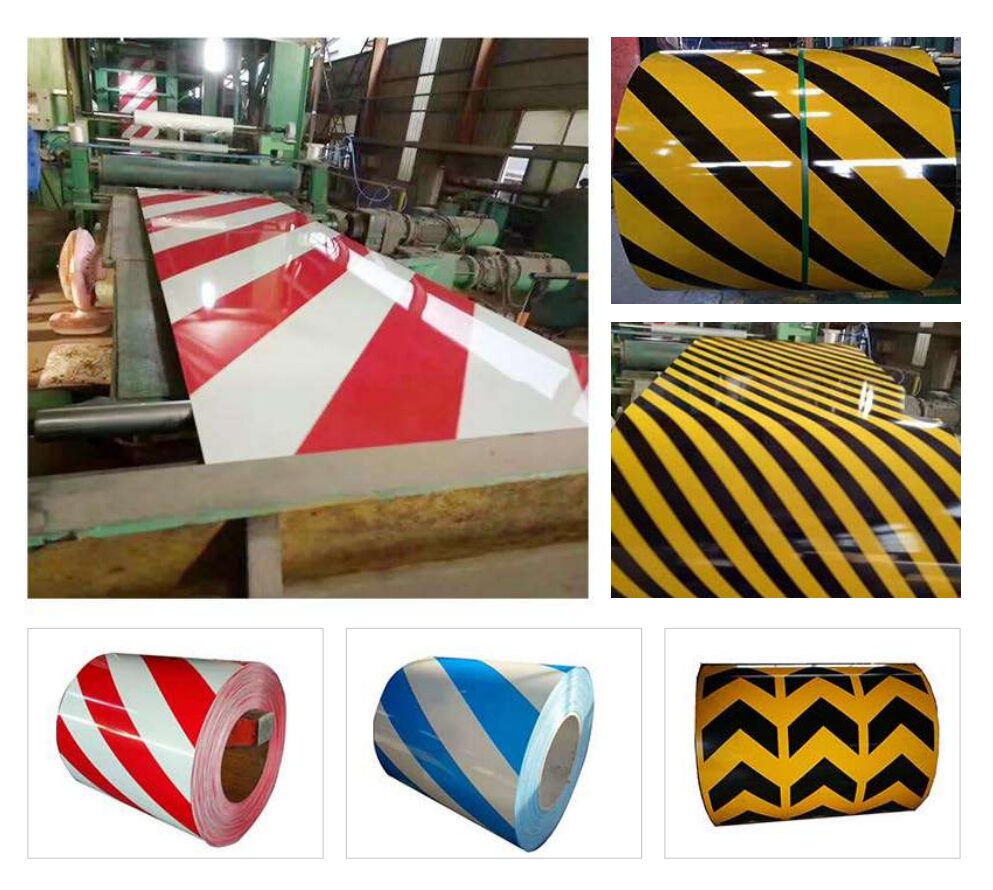

Traffic Pattern

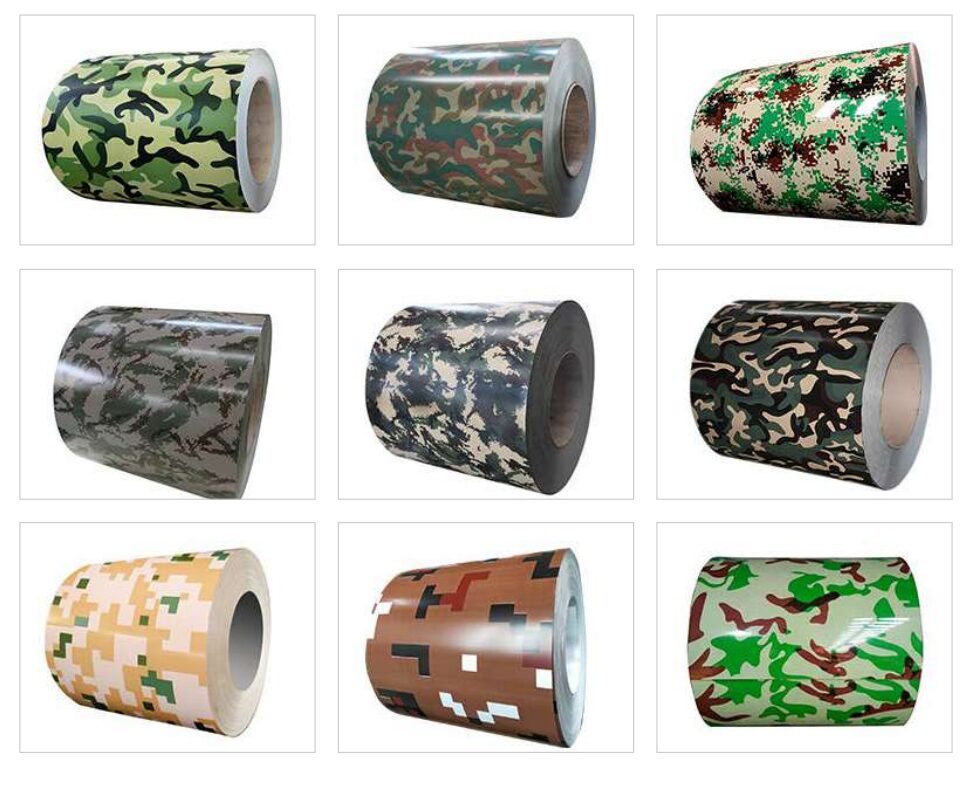

Camouflage Pattern

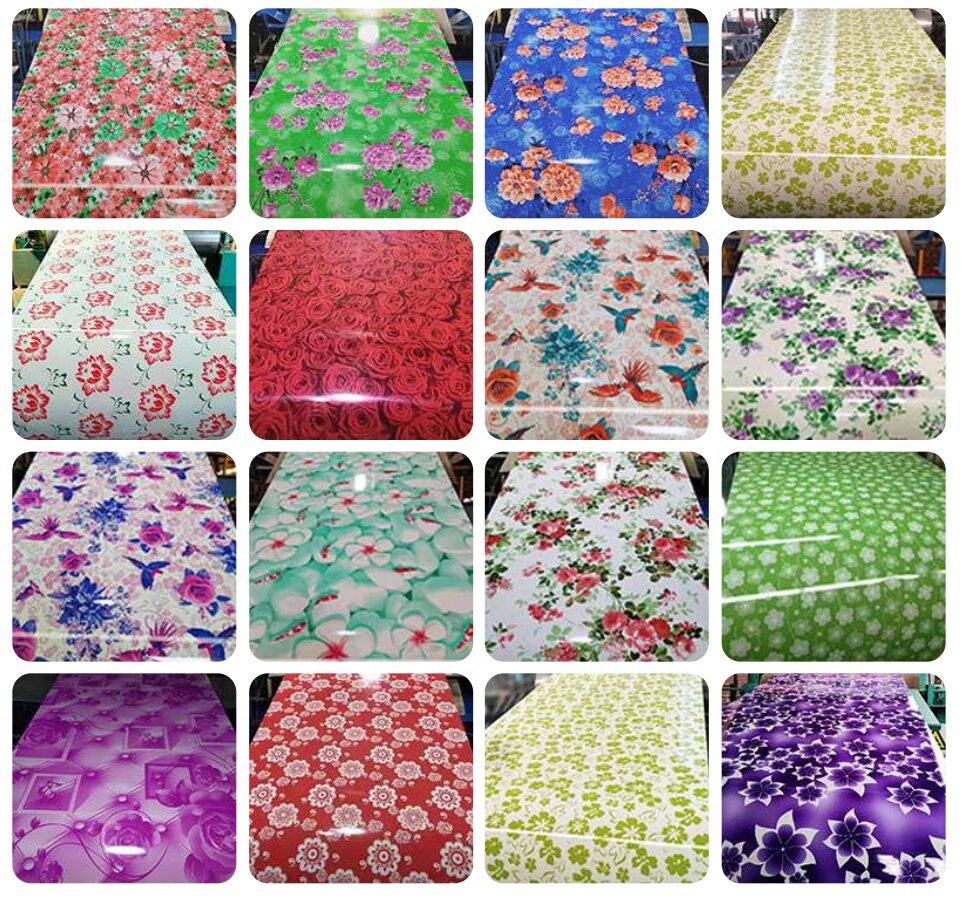

Flower Pattern
Available on PPGI, PPGL, and PPZAM substrates. Custom patterns also available upon request.
Applications
Where Color Coated Steel Is Used — 2 Rows × 4 Columns
Roofing & Wall Panels
Corrugated sheets, standing seam profiles
Prefab Houses
Modular homes, container houses
Sandwich Panels
PIR / PUR / EPS insulated panels
Cold Storage
Freezer rooms, cold chain buildings
Roll-Formed Profiles
Floor deck, ceiling profiles, flashing
Steel Structures
Industrial buildings, warehouses
Agriculture
Poultry sheds, grain storage, barns
Electrical Enclosures
Switchboards, cabinets, panels
Packaging & Shipping
Export-Standard Packaging for Safe Transit — 2 Rows × 3 Columns

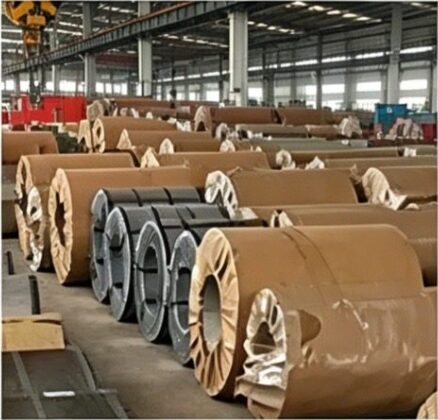

General Package

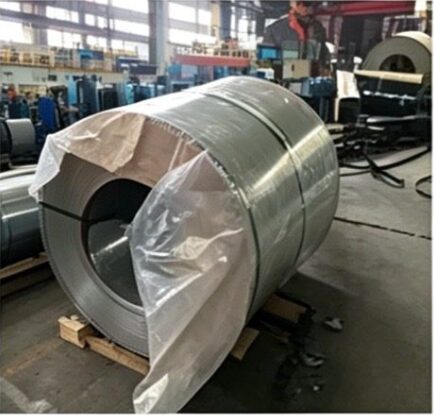

Water-proof Paper & Plastic Film

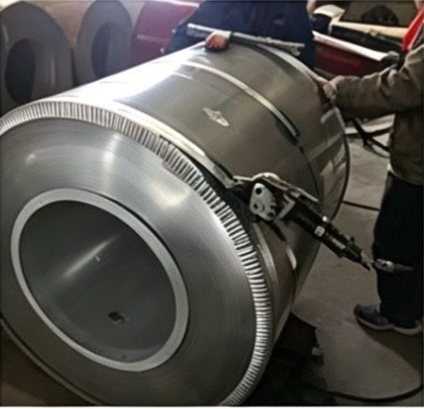

Steel Strip Outside

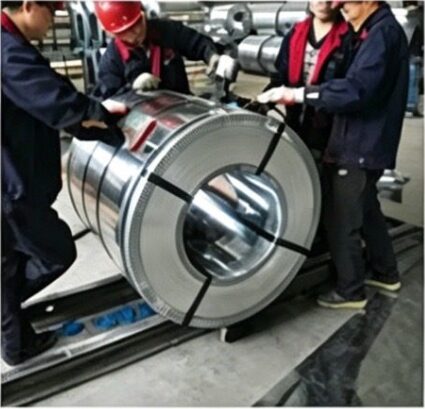

Standard Export Package

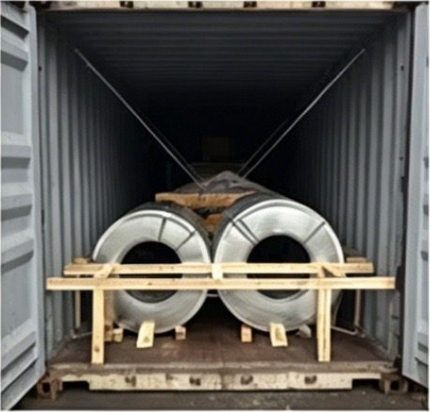

Shipping via Container

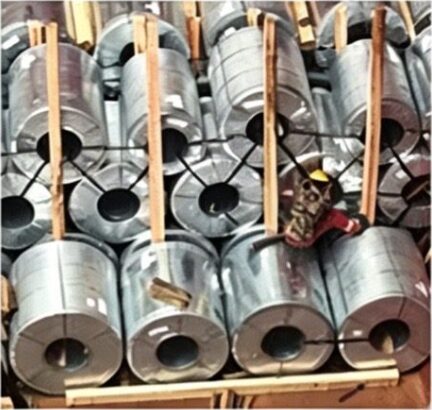

Shipping via Bulk Carrier
Each bundle tagged with: MTC number, coil ID, size, paint system, color code, net/gross weight.
