Floor Decking Sheet
Professional Steel Floor Decking Sheet for Concrete Slabs
Permanent formwork for concrete slabs — high strength, fire-resistant, fast installation. Ideal for high-rise buildings, commercial complexes, and industrial projects.
About Floor Decking Sheet
Composite Steel Deck for Concrete Slabs
Steel Floor Decking Sheet is roll-formed from galvanized steel coils, serving as permanent formwork for concrete slabs. It acts as both a working platform during construction and provides composite action with concrete under service loads, functioning as both formwork and reinforcement.
Widely used in high-rise buildings, commercial complexes, industrial plants, and parking structures. Our floor deck systems meet international standards including ASTM A653, JIS Standards, and GB/T 12755.
Core Benefits: High Load Capacity • Fast Construction • Fire Resistant • Cost Saving.
High Load Capacity
Superior strength-to-weight ratio design ensures excellent load-bearing performance under concrete and live loads.
Fast Construction
Eliminates traditional formwork — no temporary shoring needed. Reduces construction time significantly.
Fire Resistant
Steel deck provides excellent fire rating performance. Composite action with concrete enhances overall fire resistance.
Cost Saving
Reduces labor and material costs. No formwork removal. Faster floor cycle means earlier project completion.
Floor Decking Sheet Drawings Option
Choose Your Profile — Available Decking Profiles

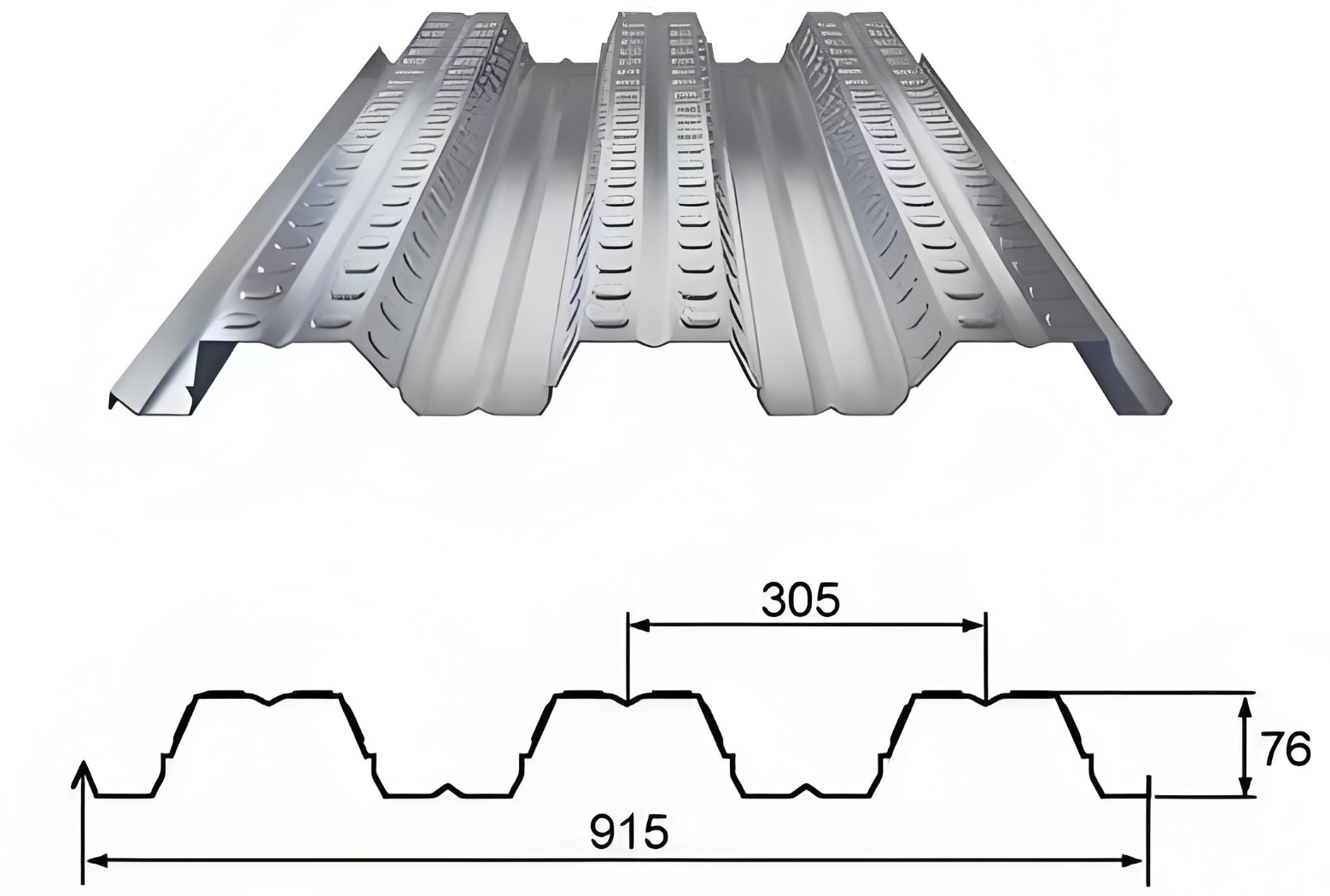

QS-76-305-915

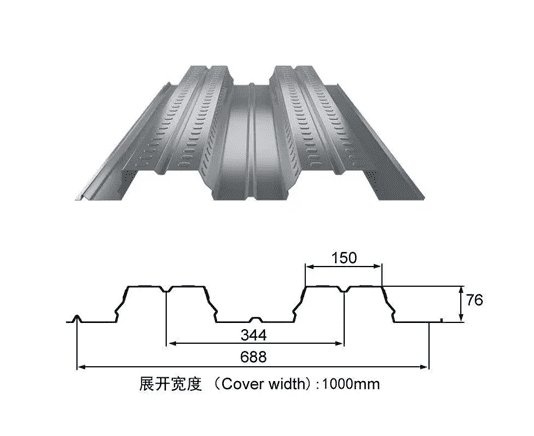

QS-76-150-1000

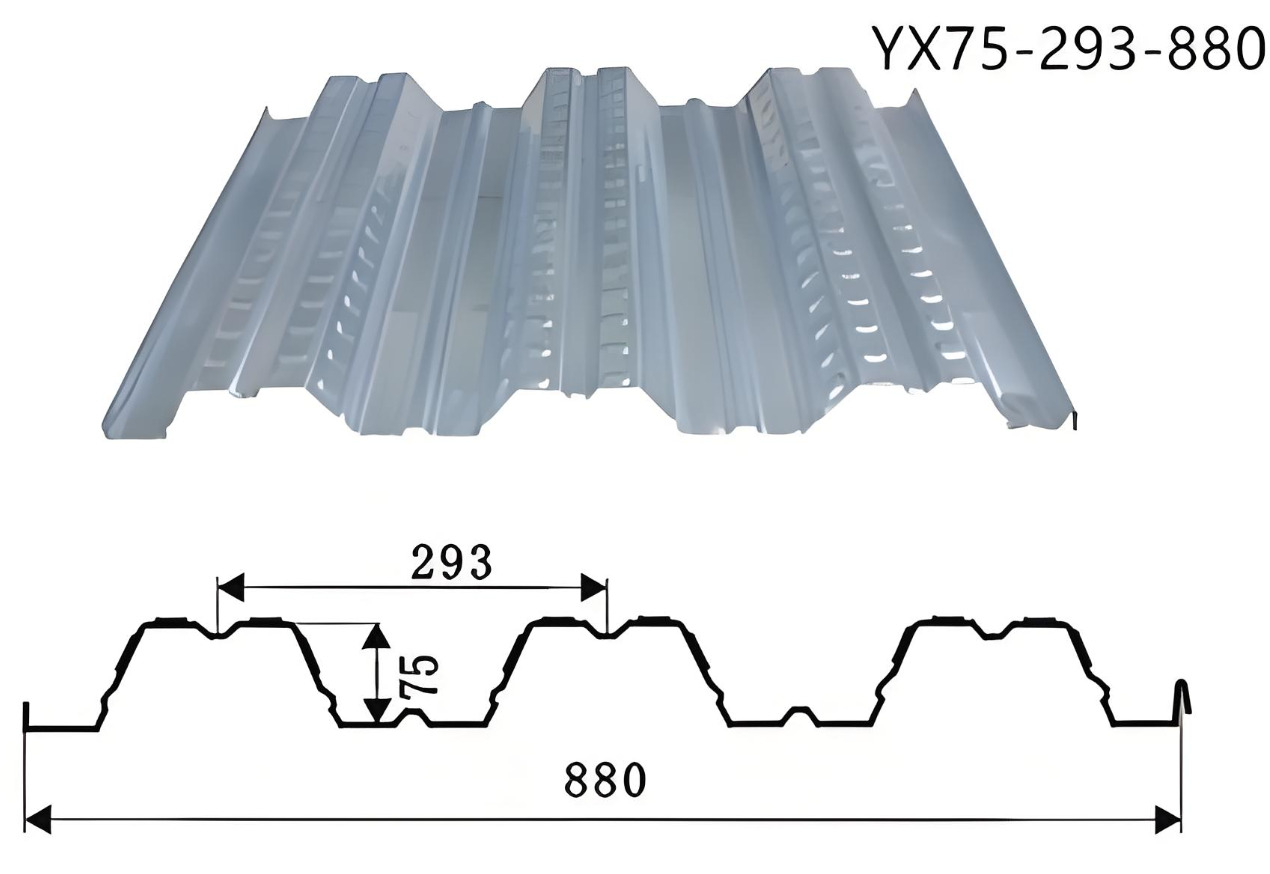

QS-75-293-880

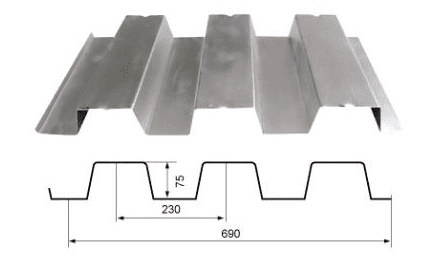

QS-75-230-690

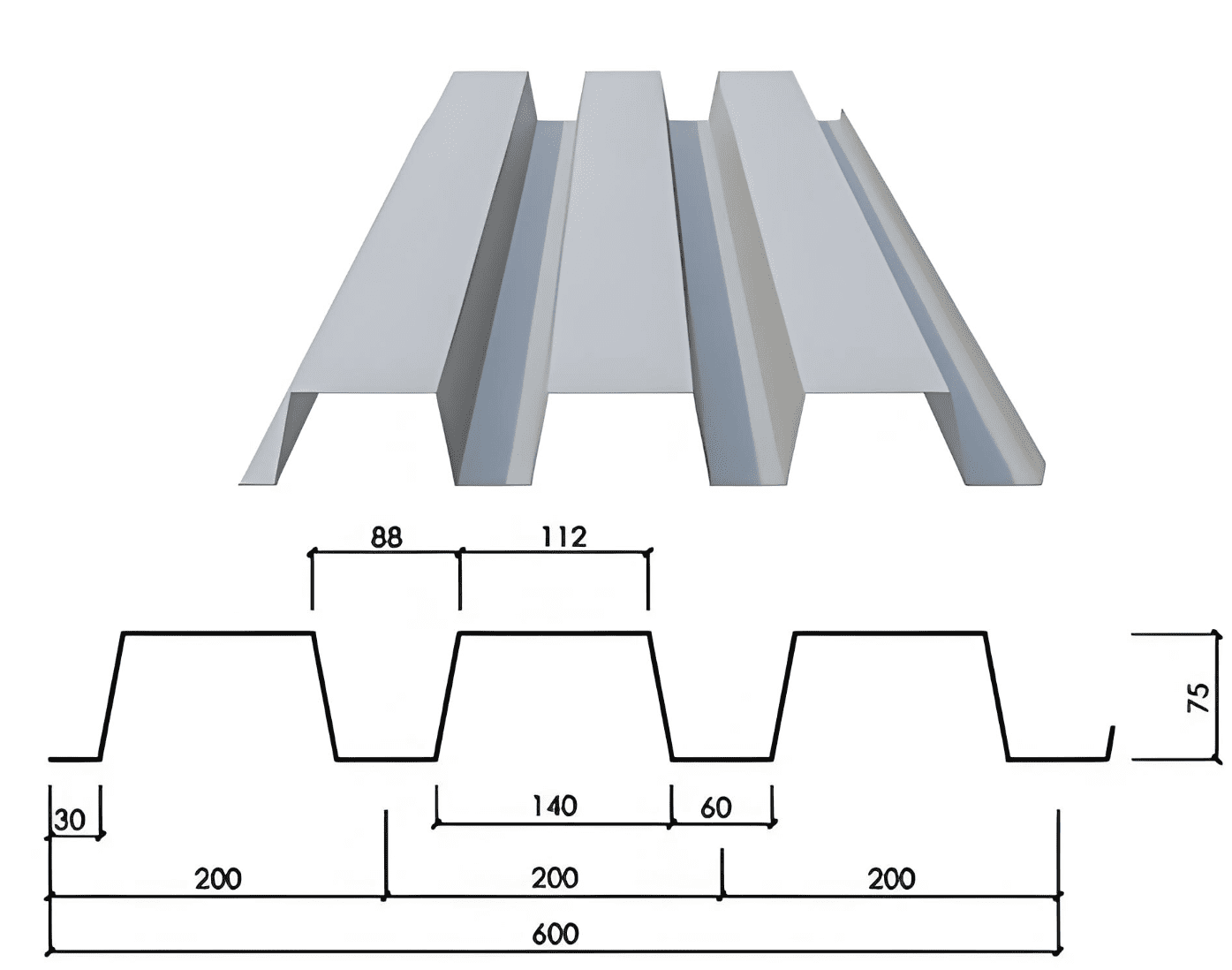

QS-75-200-600

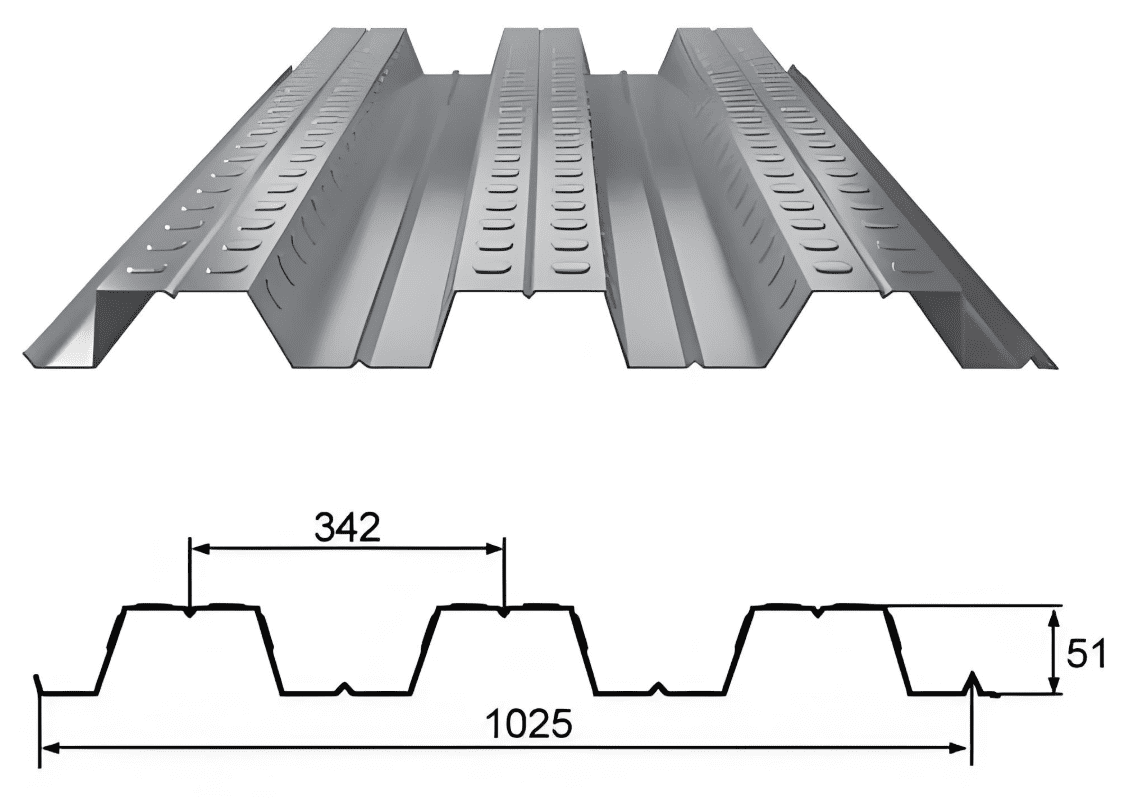

QS-51-342-1025

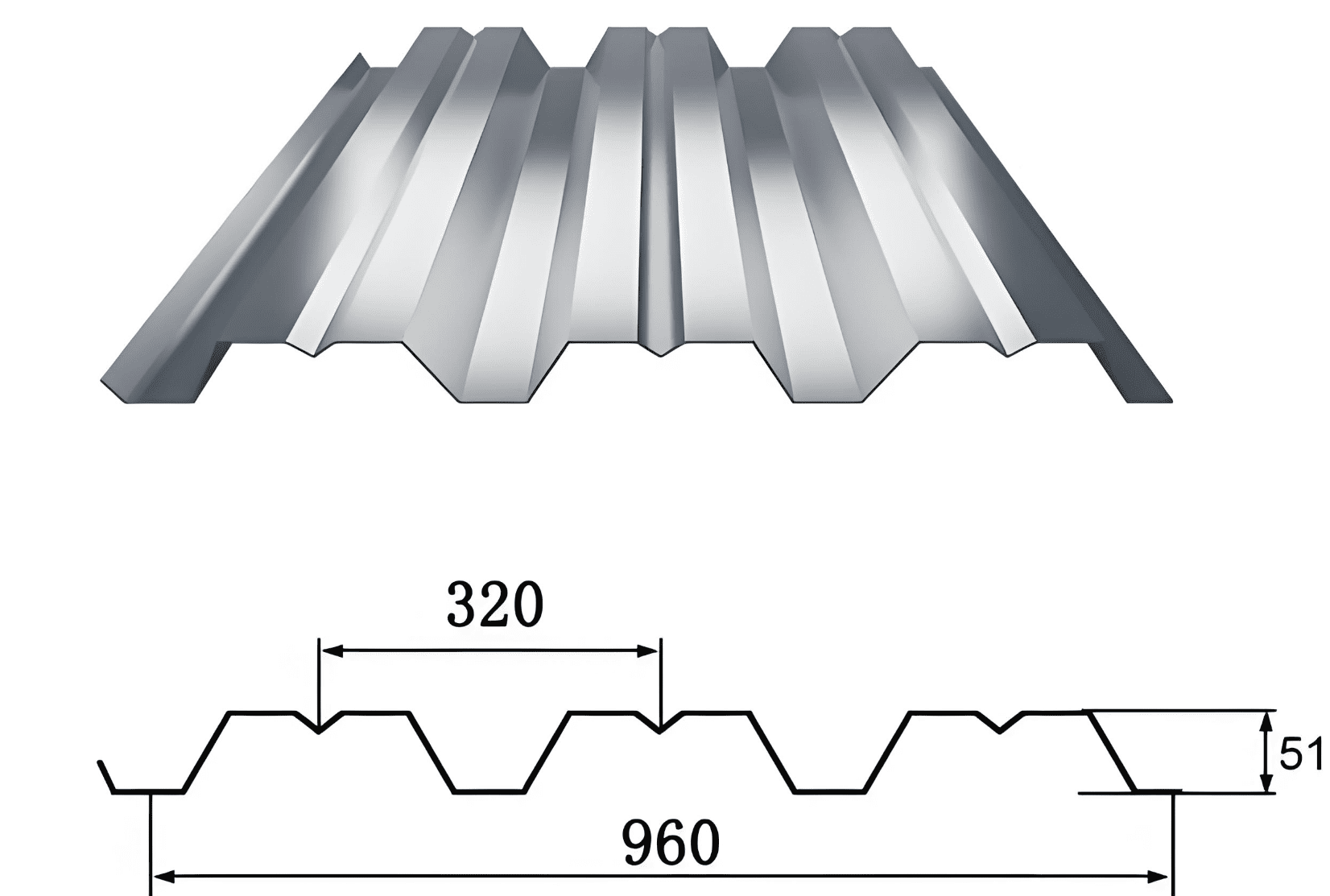

QS-51-320-960

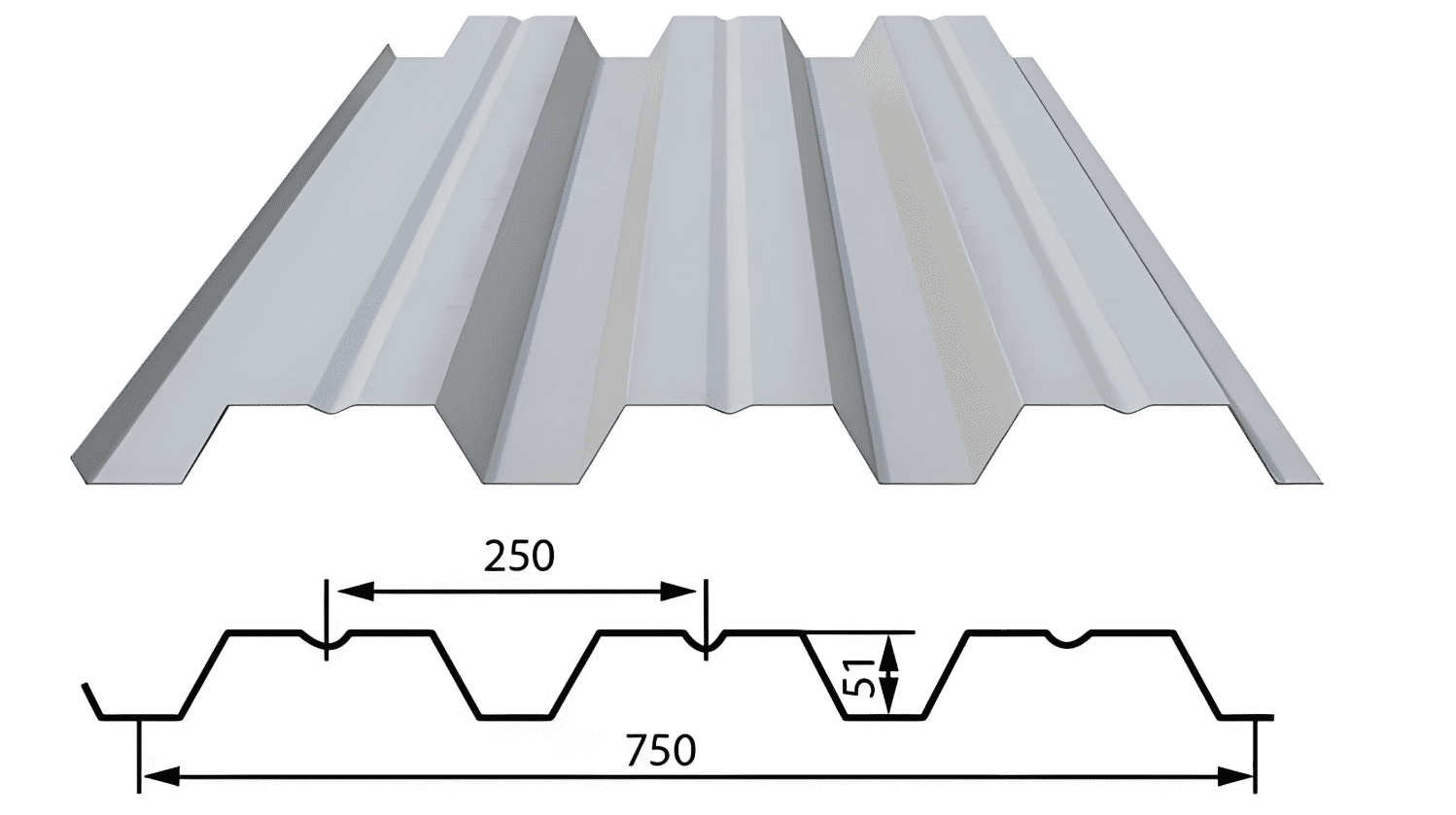

QS-51-250-750

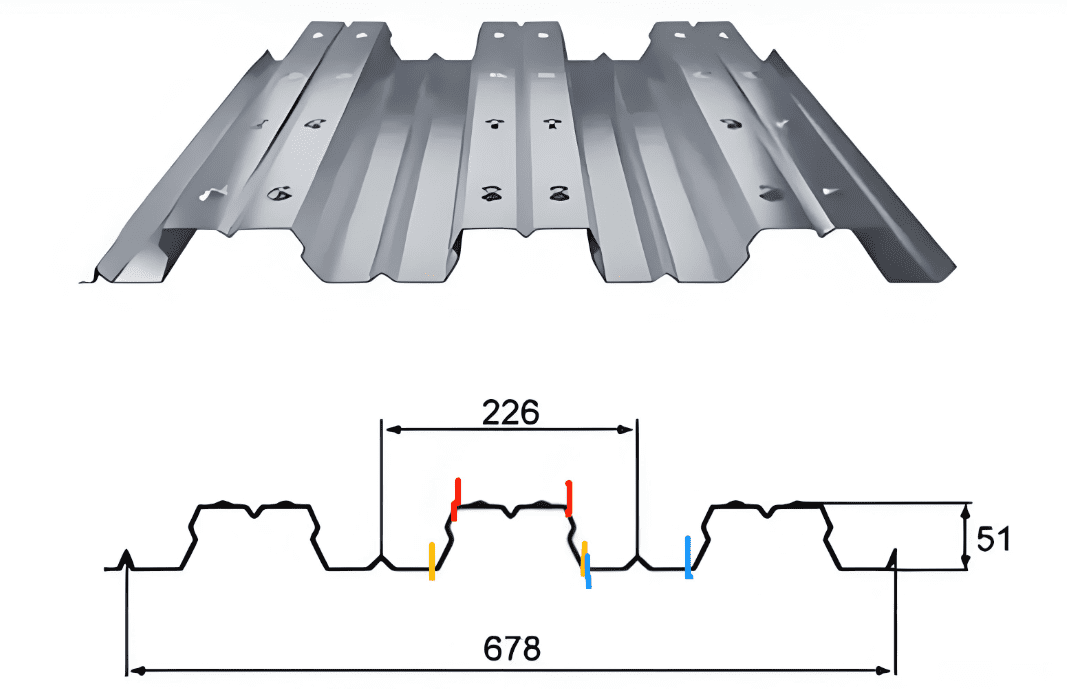

QS-51-226-678

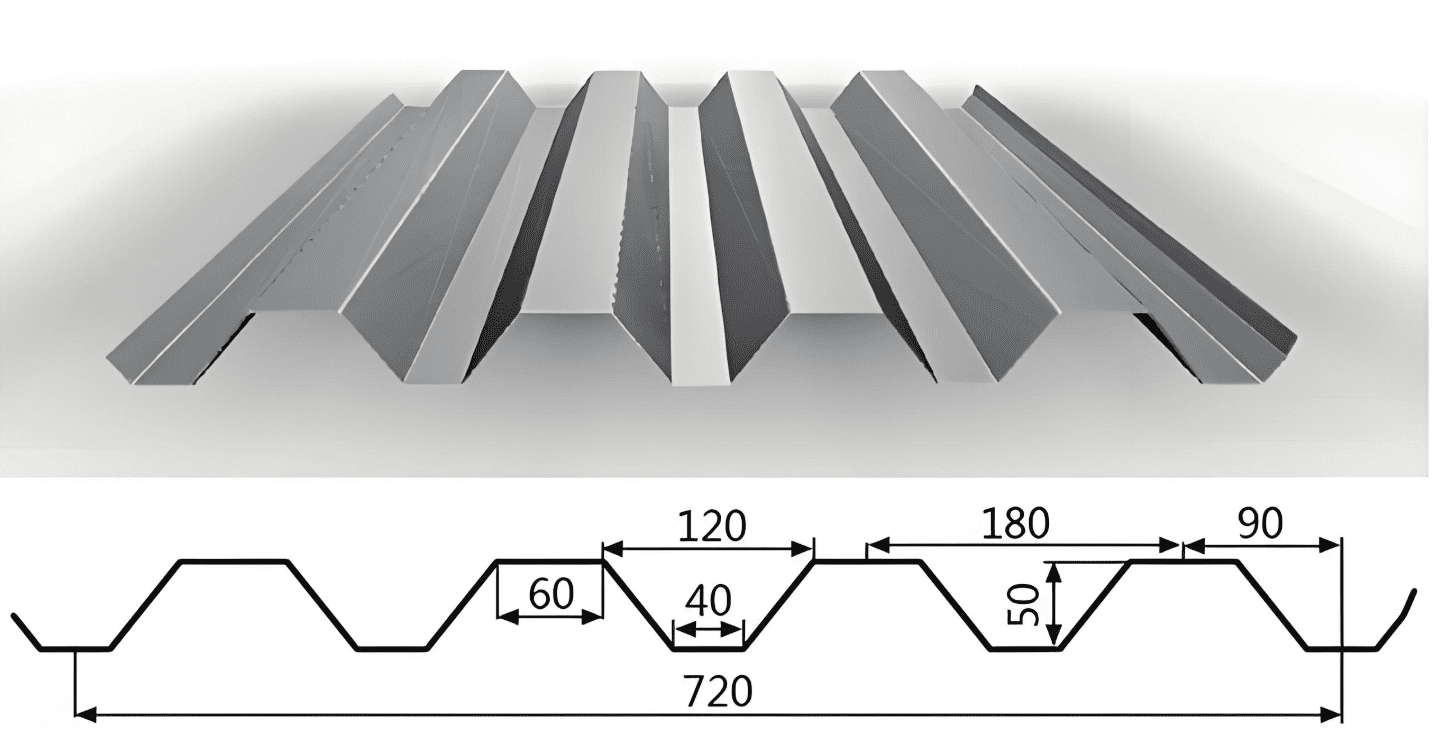

QS-50-180-720

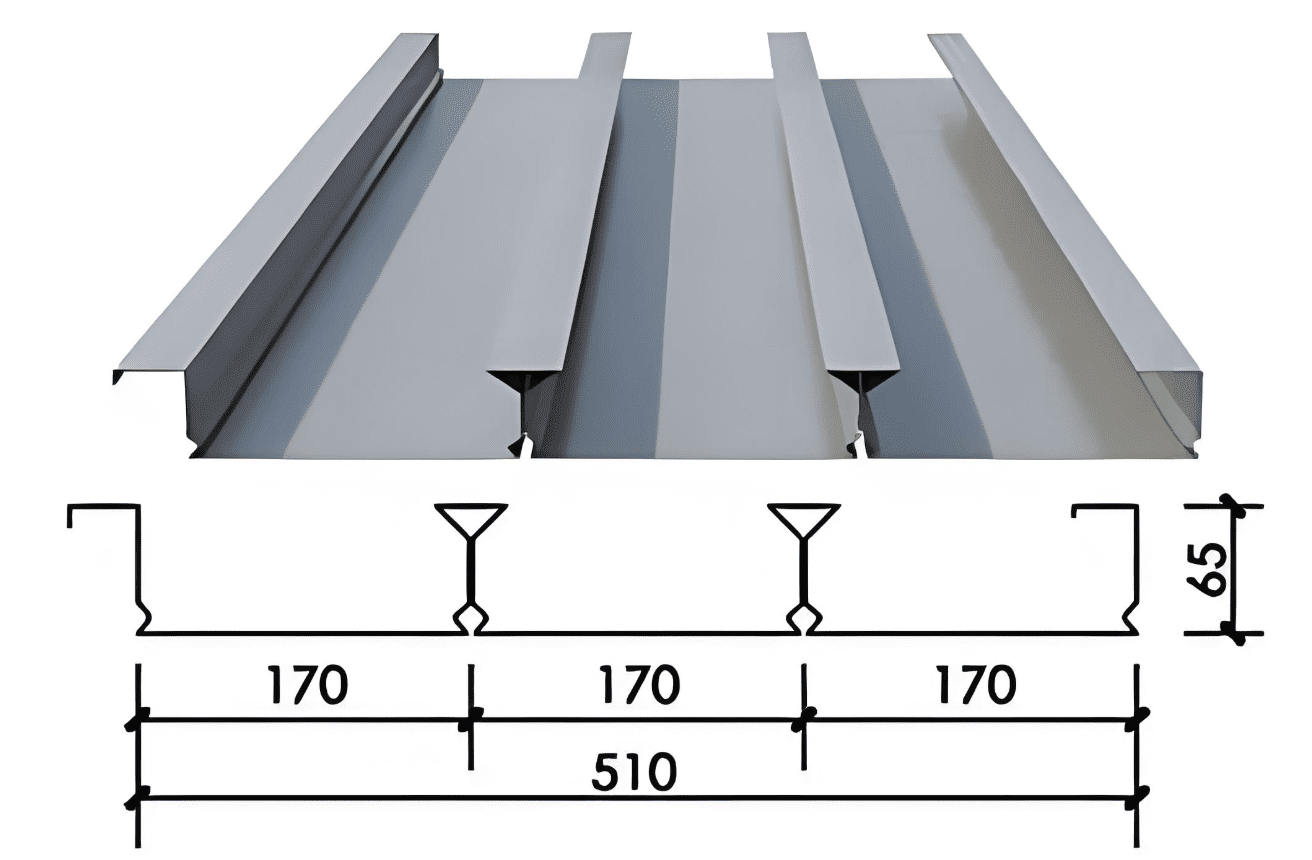

QS-65-170-510

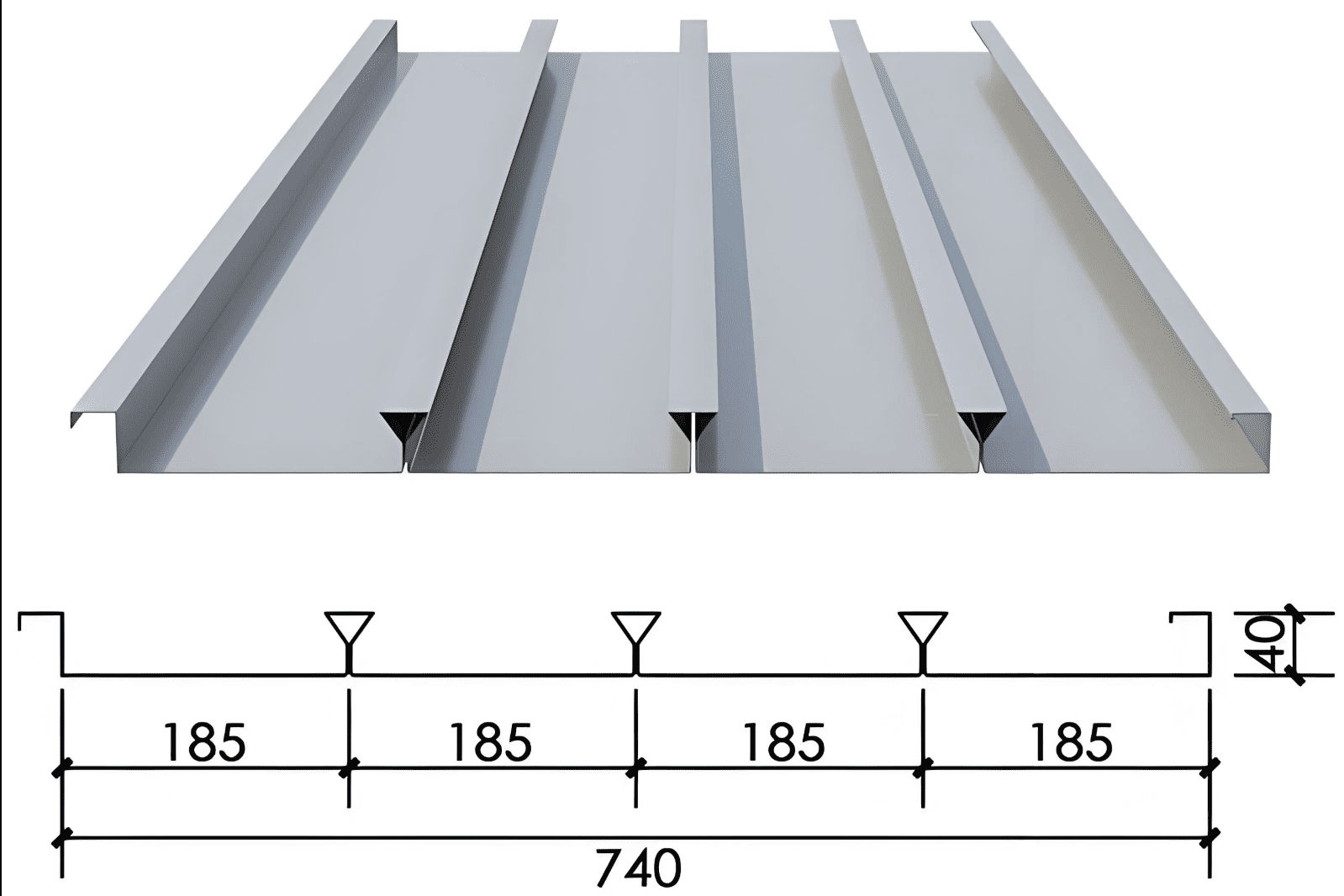

QS-40-185-740

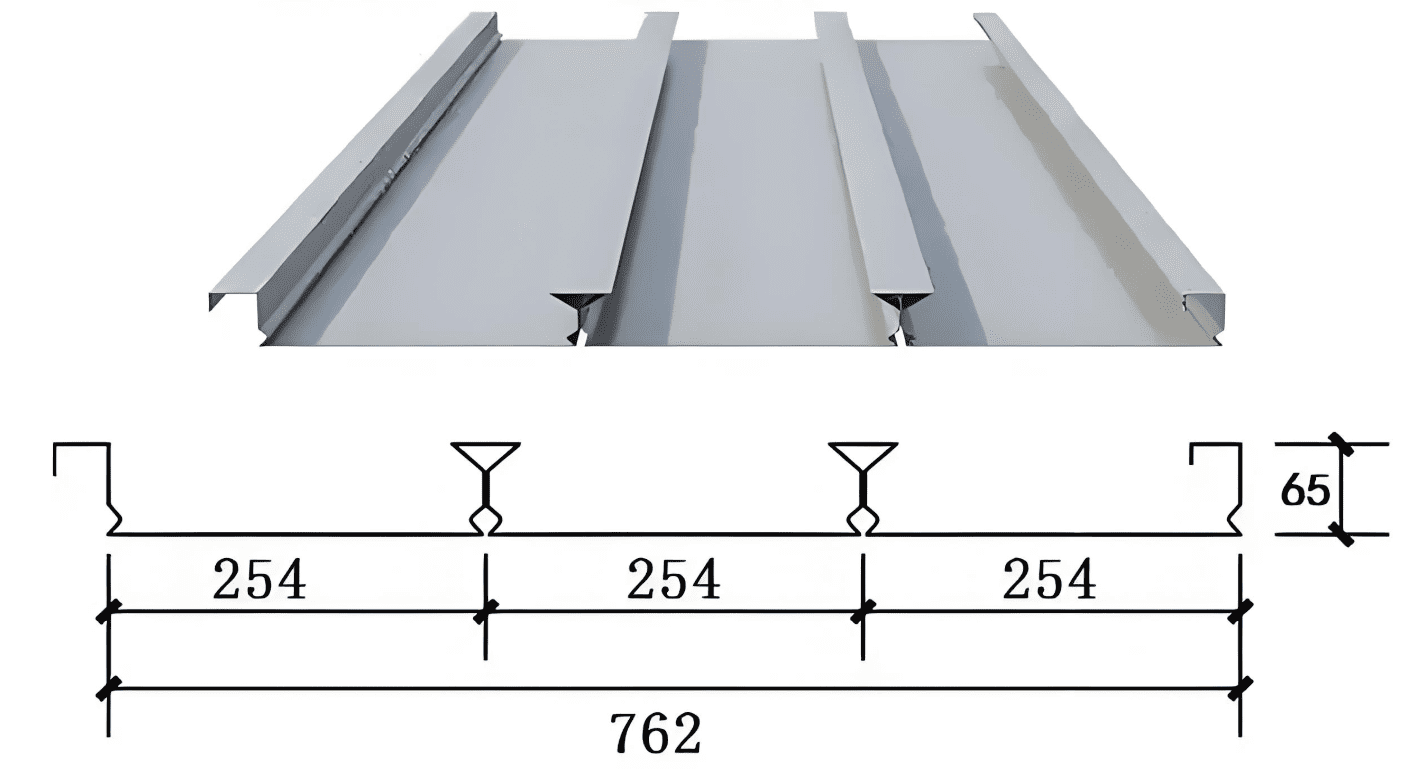

QS-65-254-762

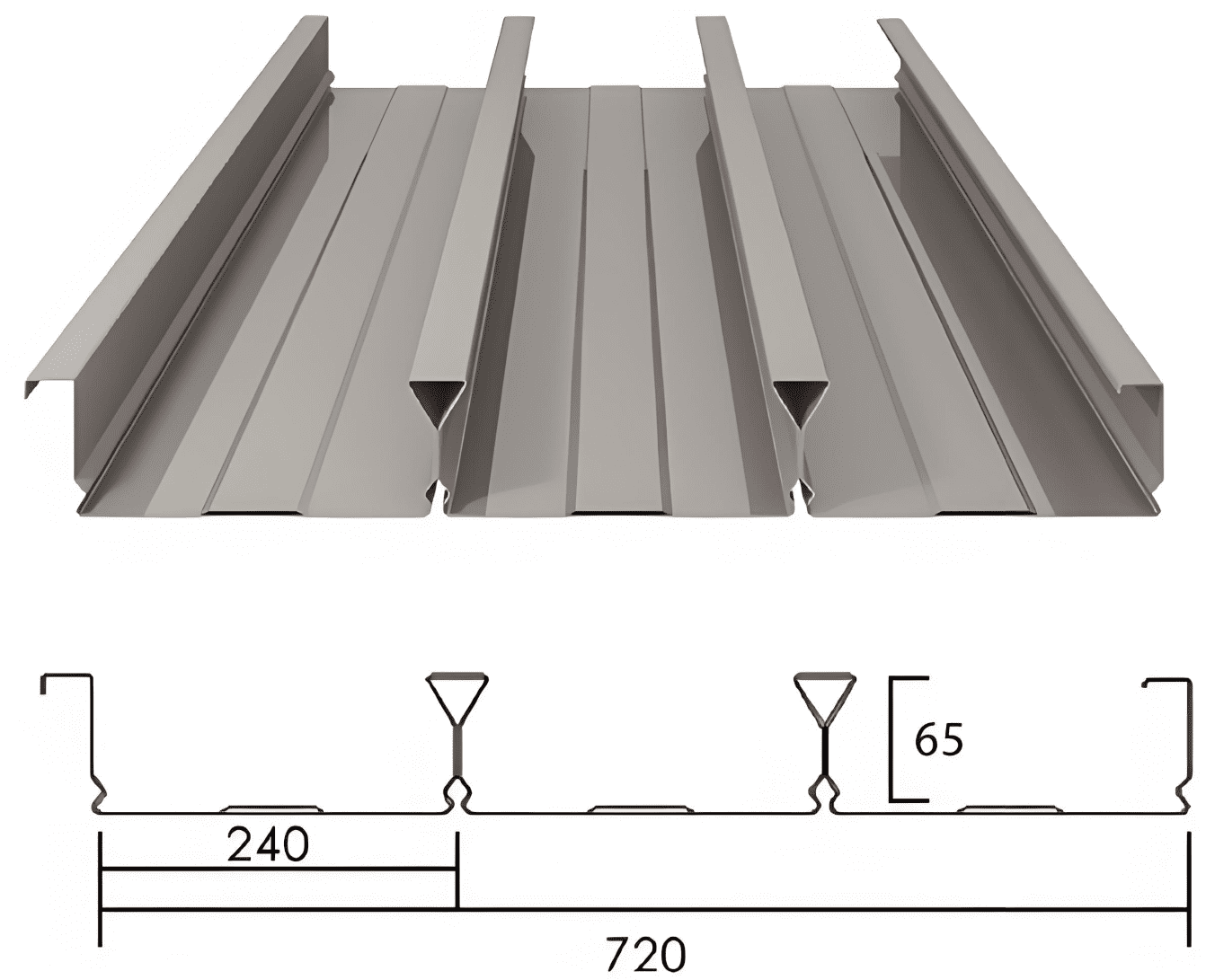

QS-65-240-720
Technical Specifications
Floor Decking Sheet Parameters
| Parameter | Details |
|---|---|
| Base Metal | Hot Dipped Galvanized Steel (GI) / Galvalume Steel (GL) |
| Thickness | 0.80 / 1.00 / 1.20 / 1.50 mm |
| Zinc Coating | Z40 – Z275 g/m² |
| Yield Strength | G300 – G550 (ASTM A653) / 250 – 550 MPa |
| Effective Width | 555 / 600 / 750 / 915 mm (depending on profile) |
| Length | Custom cut as per customer's drawings |
| Max Unshored Span | 2.5 – 4.5 m (depending on profile and thickness) |
| Surface Treatment | Galvanized / Galvalume / Anti-fingerprint coating |
| Standards | ASTM A653 / JIS Standards / GB/T 12755 |
Applications
Widely Used in Modern Construction
High-Rise Buildings
Efficient floor systems for multi-story steel frame structures
Commercial Complexes
Shopping malls, office towers, and mixed-use developments
Industrial Plants
Heavy-duty flooring for manufacturing and warehouse facilities
Parking Structures
Multi-level car parks with durable, fire-resistant decking
Related Products
Explore more solutions from Qiaosi Steel

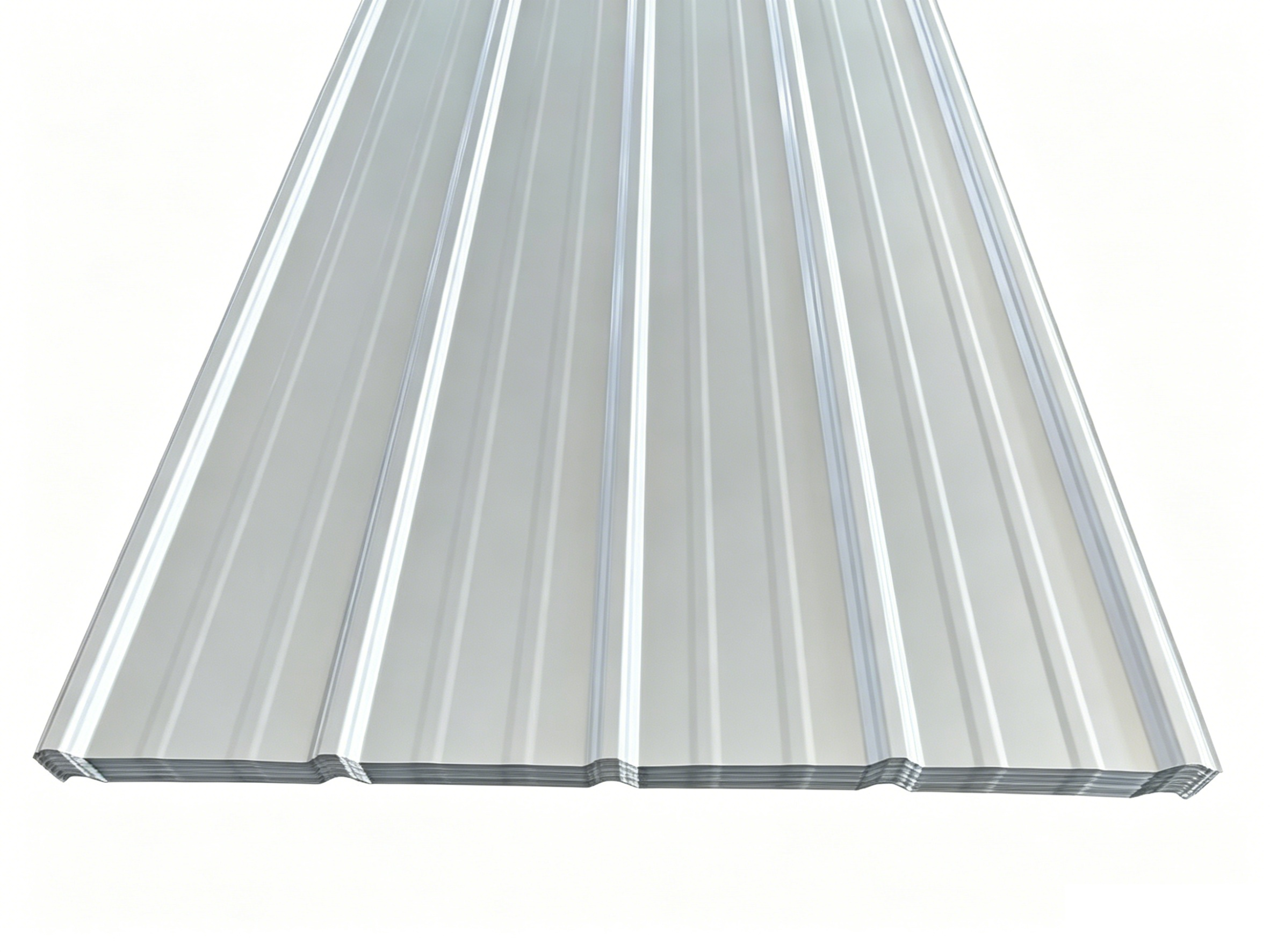

Steel Roofing Sheet
Corrugated, trapezoidal, standing seam profiles. Color coated, galvanized.
Learn More →

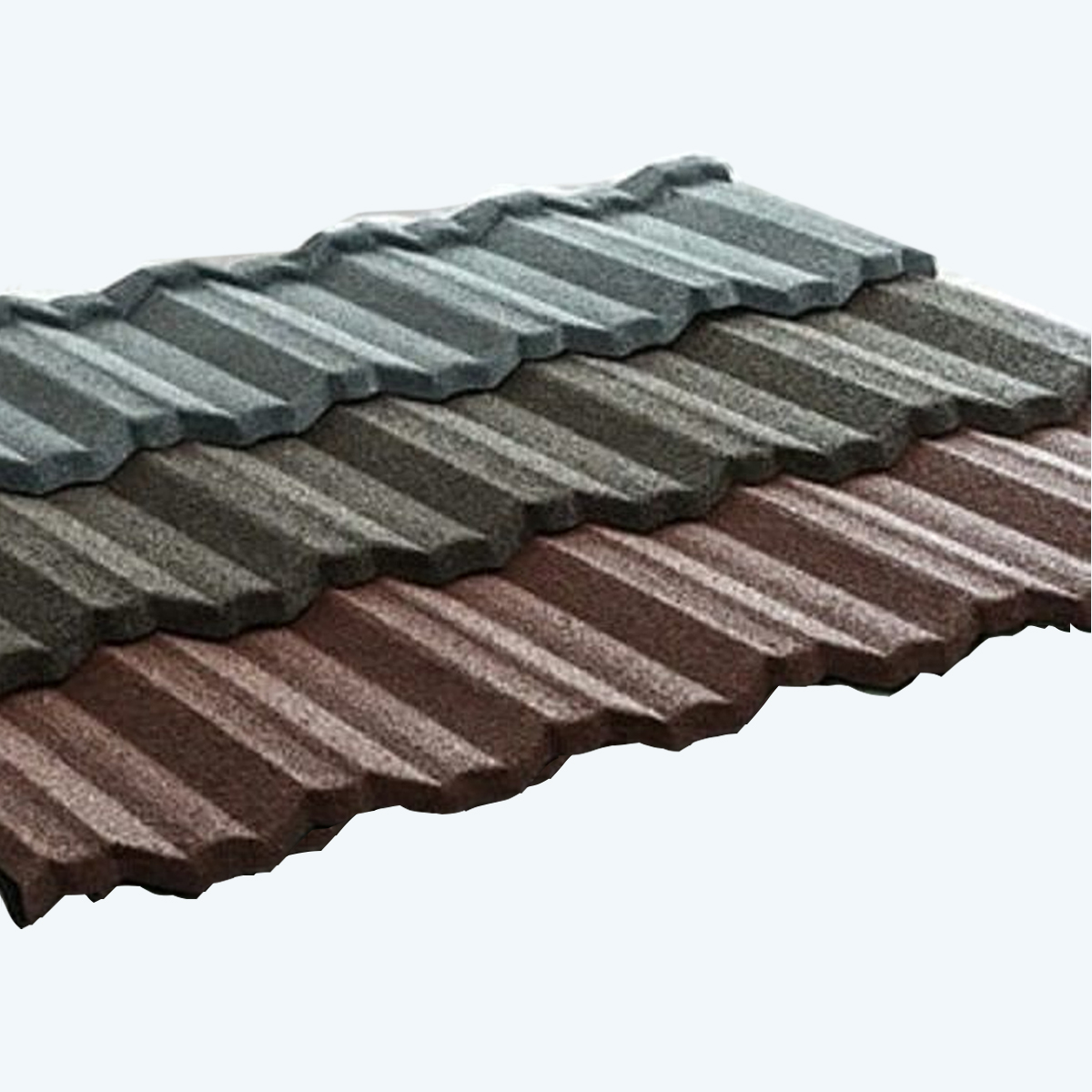

Stone Coated Metal Roof Tile
Premium stone-coated steel roof tiles. Durable and aesthetic.
Learn More →

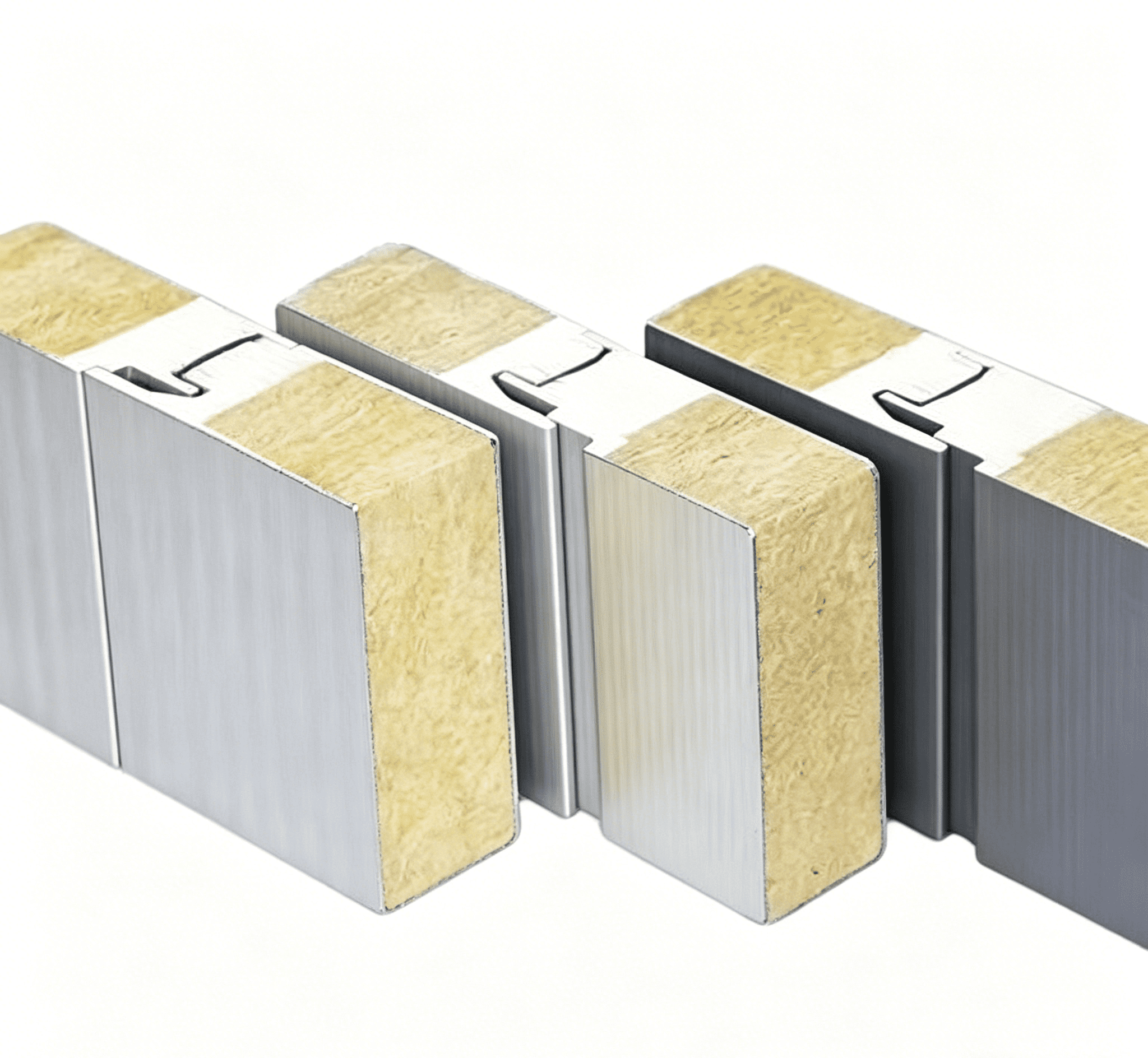

PU Sealed Rock Wool Sandwich Panel
